Lithium Energy Storage
JH-BE 10000
51.2 V 200 Ah LiFePO4 Battery, 10.24 kWh
- Energy
- 10.24 kWh
- Voltage
- 51.2 V
- Capacity
- 200 Ah
- Cycle life
- 8000+ cycles @ 80% DOD
- Efficiency
- Up to 99%
- Protection
- IP54
A 10.24 kWh floor-standing battery with up to 99% efficiency, built to run a full home through long outages.
- LiFePO4
- 5-Year Warranty
- IP54
Overview
This 51.2 V 200 Ah LiFePO4 battery pack provides 10.24 kWh of energy with efficiency of up to 99%. A built-in BMS protects against over-charge, over-discharge and short circuit for safe, reliable operation. High-energy-density LiFePO4 cells deliver 3000+ cycles at 100% DOD (8000+ at 80% DOD), stable output voltage, low self-discharge and strong vibration and shock resistance. It operates from -20 °C to 60 °C and suits solar storage, backup power, caravans, marine use, golf carts and remote monitoring.
- High cycle life: 3000+ cycles at 100% DOD, 8000+ at 80% DOD
- Built-in BMS against over-charge, over-discharge and short circuit
- High energy density LiFePO4 technology
- Wide operating range, up to 60 °C discharge temperature
- Stable output voltage
- Vibration and shock resistant construction
- No memory effect
- Pressure-resistant LiFePO4 cells for improved safety
- Up to 99% efficiency with low self-discharge
Specifications
Electrical
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 200 Ah |
| Energy | 10.24 kWh |
| Cell type | Prismatic LFP cell |
| Cycle life | 8000+ cycles @ 80% DOD |
Charging
| Standard charge voltage | 58 V |
|---|---|
| Standard charge current | <35 A |
| Max charge current | 100 A |
| Balancing current (BMS) | 5–10 A |
Discharging
| Max discharge current | 100 A |
|---|---|
| Discharge cut-off voltage | 44.8 V |
Physical
| Ingress protection | IP54 |
|---|---|
| Dimensions (W × D × H) | 755 × 460 × 250 mm |
| Weight | 78 kg |
| Colour | White |
| Installation | Floor mounted |
Environment
| Charge temperature | 0 °C to 55 °C |
|---|---|
| Discharge temperature | -20 °C to 60 °C |
Warranty
| Warranty | 5 years |
|---|
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 200 Ah |
| Energy | 10.24 kWh |
| Cell type | Prismatic LFP cell |
| Cycle life | 8000+ cycles @ 80% DOD |
| Standard charge voltage | 58 V |
|---|---|
| Standard charge current | <35 A |
| Max charge current | 100 A |
| Balancing current (BMS) | 5–10 A |
| Max discharge current | 100 A |
|---|---|
| Discharge cut-off voltage | 44.8 V |
| Ingress protection | IP54 |
|---|---|
| Dimensions (W × D × H) | 755 × 460 × 250 mm |
| Weight | 78 kg |
| Colour | White |
| Installation | Floor mounted |
| Charge temperature | 0 °C to 55 °C |
|---|---|
| Discharge temperature | -20 °C to 60 °C |
| Warranty | 5 years |
|---|
Specifications are subject to change without notice. Images are for reference only.
Front panel interfaces
Communication ports, switches and terminals on the battery front panel.
- 6Parallel communication
- 7RS232
- 8CAN port
- 9Inverter communication
- 10DIP switch
- 11Reset button
- 12Weak current switch
- 13Battery positive
- 14Dry contact
- 15Battery negative

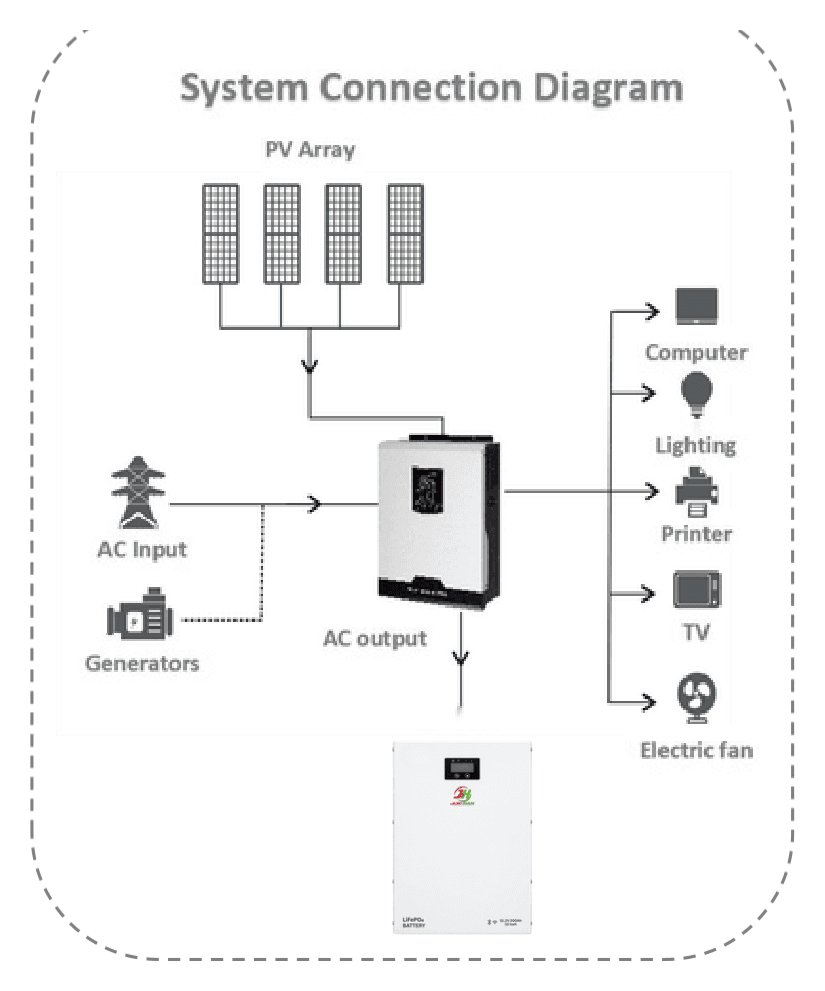

System connection
How the JH-BE 10000 connects in a solar storage system: solar panels and the grid or a generator feed the hybrid inverter, which powers your home loads and charges the battery.
FAQ
Add up the watts of the appliances you want to run during an outage and multiply by the hours. A typical home running fans, lights, a fridge and a TV for 5 hours needs about 5 to 10 kWh. Our team can size it for you.
They support CAN and RS485 communication used by mainstream hybrid inverters. Share your inverter model to confirm.
Yes. JH-BE 7500 supports up to 16 modules and JH-BE 16000 up to 15 units. Ask us for other models.
Manufacturing defects and capacity performance under normal use. Full terms are provided at purchase.
