Lithium Energy Storage

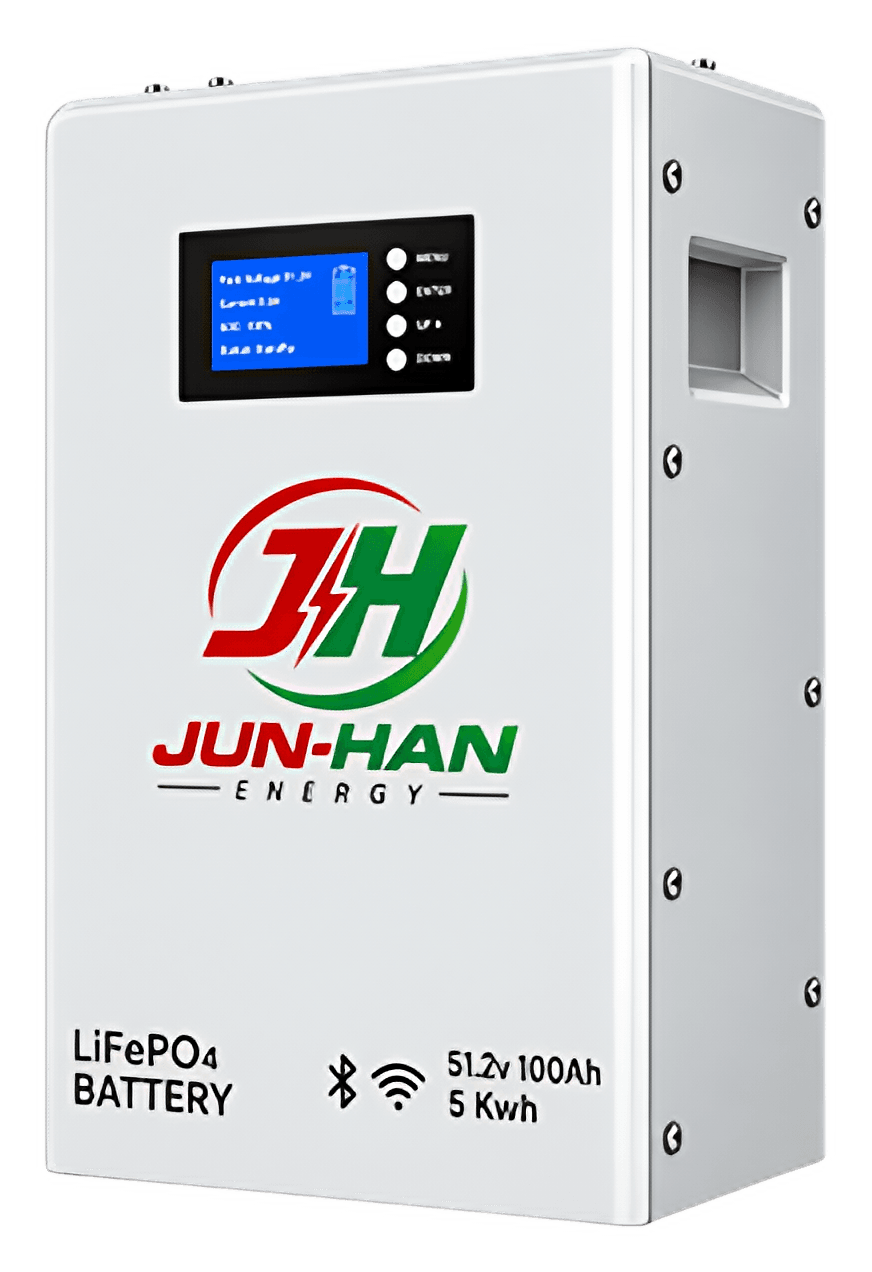

JH-BE 5120
51.2 V 100 Ah LiFePO4 Battery, 5.12 kWh
- Energy
- 5.12 kWh
- Voltage
- 51.2 V
- Capacity
- 100 Ah
- Cycle life
- ≥8000 cycles @ 80% DOD
- Max discharge
- 100 A
- Warranty
- 5 years
A 5.12 kWh, 51.2 V wall-mounted battery, the right size for most homes running essential loads through load-shedding.
- LiFePO4
- 5-Year Warranty
- IP23
Overview
The JH-BE 5120 is a 51.2 V 100 Ah LiFePO4 battery pack providing 5.12 kWh of storage. LFP prismatic cells and a built-in intelligent BMS protect against over-charge, over-discharge and short circuit, while up to 100 A charge and discharge current supports typical 5 kW hybrid inverters. Its IP23 wall-mounted enclosure keeps installation neat and space-saving for homes, shops and offices.
- LFP prismatic cells with ≥8000 cycles at 80% DOD
- Built-in intelligent BMS against over-charge, over-discharge and short circuit
- 51.2 V system voltage for 48 V hybrid inverters
- Up to 100 A charge and discharge current
- Low self-discharge and stable output voltage
- Wide discharge temperature range, -20 °C to 60 °C
- Wall-mounted IP23 enclosure
- 5-year warranty
Specifications
Electrical
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 100 Ah |
| Energy | 5.12 kWh |
| Cell type | LFP (prismatic) |
| Cycle life | ≥8000 cycles @ 80% DOD |
Charging
| Standard charge voltage | 58 V |
|---|---|
| Standard charge current | <30 A |
| Max charge current | 100 A |
| Balancing current (BMS) | 5–10 A |
Discharging
| Max discharge current | 100 A |
|---|---|
| Discharge cut-off voltage | 44 V |
Physical
| Ingress protection | IP23 |
|---|---|
| Dimensions (W × D × H) | 600 × 555 × 224.5 mm |
| Weight | 45 kg |
| Colour | White |
| Installation | Wall mounted |
Environment
| Charge temperature | 0 °C to 60 °C |
|---|---|
| Discharge temperature | -20 °C to 60 °C |
Warranty
| Warranty | 5 years |
|---|
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 100 Ah |
| Energy | 5.12 kWh |
| Cell type | LFP (prismatic) |
| Cycle life | ≥8000 cycles @ 80% DOD |
| Standard charge voltage | 58 V |
|---|---|
| Standard charge current | <30 A |
| Max charge current | 100 A |
| Balancing current (BMS) | 5–10 A |
| Max discharge current | 100 A |
|---|---|
| Discharge cut-off voltage | 44 V |
| Ingress protection | IP23 |
|---|---|
| Dimensions (W × D × H) | 600 × 555 × 224.5 mm |
| Weight | 45 kg |
| Colour | White |
| Installation | Wall mounted |
| Charge temperature | 0 °C to 60 °C |
|---|---|
| Discharge temperature | -20 °C to 60 °C |
| Warranty | 5 years |
|---|
Specifications are subject to change without notice. Images are for reference only.
Front panel interfaces
Communication ports, switches and terminals on the battery front panel.
- 6Parallel communication
- 7RS232
- 8CAN port
- 9Inverter communication
- 10DIP switch
- 11Reset button
- 12Weak current switch
- 13Battery positive
- 14Dry contact
- 15Battery negative

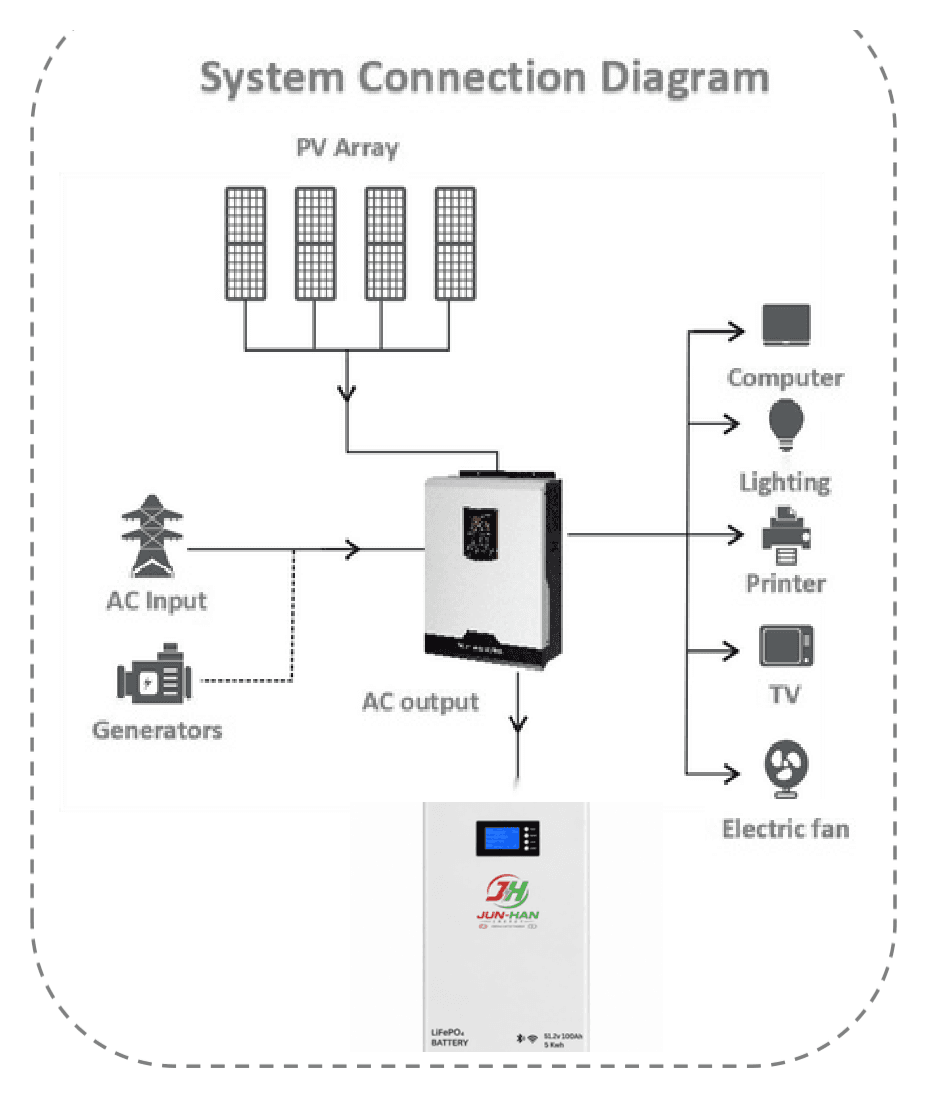

System connection
How the JH-BE 5120 connects in a solar storage system: solar panels and the grid or a generator feed the hybrid inverter, which powers your home loads and charges the battery.
FAQ
Add up the watts of the appliances you want to run during an outage and multiply by the hours. A typical home running fans, lights, a fridge and a TV for 5 hours needs about 5 to 10 kWh. Our team can size it for you.
They support CAN and RS485 communication used by mainstream hybrid inverters. Share your inverter model to confirm.
Yes. JH-BE 7500 supports up to 16 modules and JH-BE 16000 up to 15 units. Ask us for other models.
Manufacturing defects and capacity performance under normal use. Full terms are provided at purchase.
