Lithium Energy Storage
JH-BE 7500
51.2 V 150 Ah LiFePO4 Battery, 7.68 kWh
- Energy
- 7.68 kWh
- Voltage
- 51.2 V
- Capacity
- 150 Ah
- Cells
- BYD Blade
- Parallel
- Up to 16 units
- Warranty
- 5 years
A modular 7.68 kWh wall-mounted battery with BYD Blade cells, WiFi monitoring and up to 16 units in parallel.
- LiFePO4
- 5-Year Warranty
- IP23
Overview
The JH-BE 7500 is a lithium iron phosphate battery pack designed and manufactured by JUN-HAN Energy. Its modular design creates a flexible system for both on-grid and off-grid applications. The wall-mounted unit includes WiFi monitoring, plug-in terminals for easy operation, fast charge and discharge, and a built-in battery status display. With a design life of ≥6000 cycles and a 5-year warranty, it offers high safety, reliability and long life for homes, shops and offices.
- High-quality LiFePO4 (BYD Blade) cells for better performance and reliability
- Modular design for on-grid and off-grid applications
- Up to 16 battery modules in parallel
- CAN / RS485 / RS232 communication, compatible with mainstream inverters
- Wall-mounted design with WiFi, easy to install
- Design life ≥6000 cycles (≥8000 cycles @ 80% DOD in spec table)
- Wide temperature range: -20 °C to 60 °C
- Suited to homes, shops and offices
Specifications
Electrical
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 150 Ah |
| Energy | 7.68 kWh |
| Cell type | BYD Blade cell |
| Cycle life | ≥8000 cycles @ 80% DOD |
Charging
| Standard charge voltage | 58 V |
|---|---|
| Standard charge current | <30 A |
| Max charge current | 100 A |
| Balancing current (BMS) | 5–10 A |
Discharging
| Max discharge current | 100 A |
|---|---|
| Discharge cut-off voltage | 45 V |
Physical
| Ingress protection | IP23 |
|---|---|
| Dimensions (W × D × H) | 420 × 210 × 760 mm |
| Weight | 73 kg |
| Colour | White |
| Installation | Wall mounted |
Environment
| Charge temperature | 0 °C to 60 °C |
|---|---|
| Discharge temperature | -20 °C to 60 °C |
Warranty
| Warranty | 5 years |
|---|
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 150 Ah |
| Energy | 7.68 kWh |
| Cell type | BYD Blade cell |
| Cycle life | ≥8000 cycles @ 80% DOD |
| Standard charge voltage | 58 V |
|---|---|
| Standard charge current | <30 A |
| Max charge current | 100 A |
| Balancing current (BMS) | 5–10 A |
| Max discharge current | 100 A |
|---|---|
| Discharge cut-off voltage | 45 V |
| Ingress protection | IP23 |
|---|---|
| Dimensions (W × D × H) | 420 × 210 × 760 mm |
| Weight | 73 kg |
| Colour | White |
| Installation | Wall mounted |
| Charge temperature | 0 °C to 60 °C |
|---|---|
| Discharge temperature | -20 °C to 60 °C |
| Warranty | 5 years |
|---|
Specifications are subject to change without notice. Images are for reference only.
Front panel interfaces
Communication ports, switches and terminals on the battery front panel.
- 6Parallel communication
- 7RS232
- 8CAN port
- 9Inverter communication
- 10DIP switch
- 11Reset button
- 12Weak current switch
- 13Battery positive
- 14Dry contact
- 15Battery negative

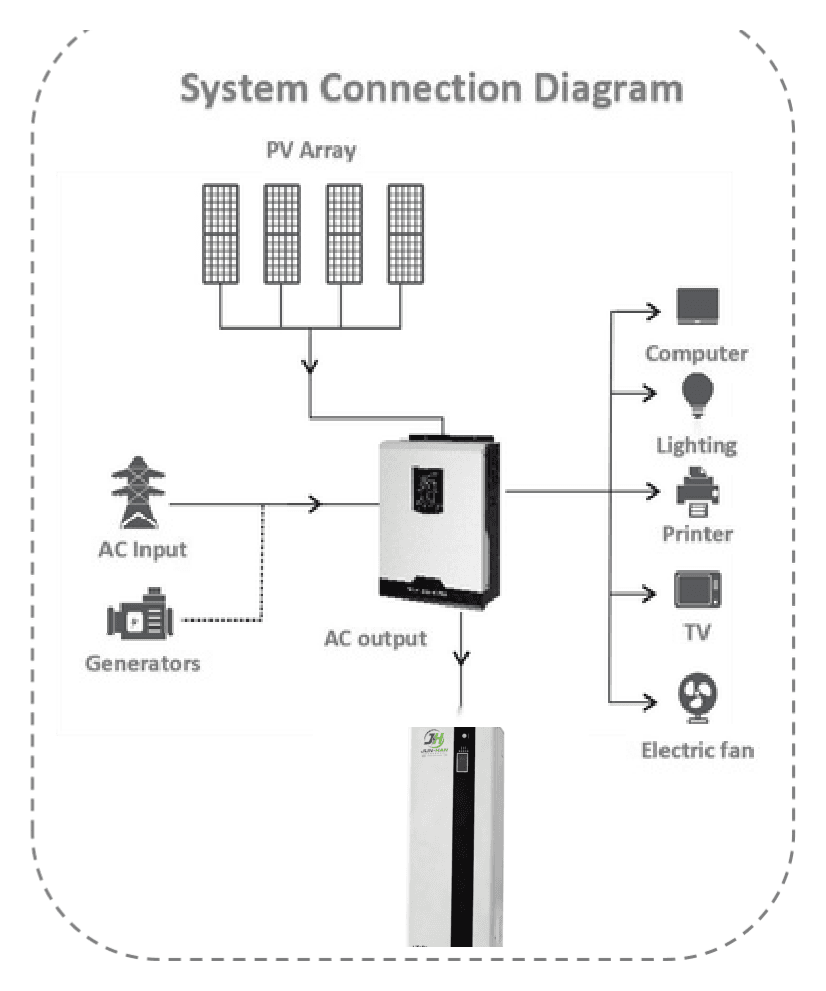

System connection
How the JH-BE 7500 connects in a solar storage system: solar panels and the grid or a generator feed the hybrid inverter, which powers your home loads and charges the battery.
FAQ
Add up the watts of the appliances you want to run during an outage and multiply by the hours. A typical home running fans, lights, a fridge and a TV for 5 hours needs about 5 to 10 kWh. Our team can size it for you.
They support CAN and RS485 communication used by mainstream hybrid inverters. Share your inverter model to confirm.
Yes. JH-BE 7500 supports up to 16 modules and JH-BE 16000 up to 15 units. Ask us for other models.
Manufacturing defects and capacity performance under normal use. Full terms are provided at purchase.
