Lithium Energy Storage
JH-BE 24000
51.2 V 486 Ah LiFePO4 Battery, 24.88 kWh
- Energy
- 24.88 kWh
- Voltage
- 51.2 V
- Capacity
- 486 Ah
- Cycle life
- ≥8000 cycles @ 80% DOD
- Max discharge
- 200 A
- Protection
- IP54

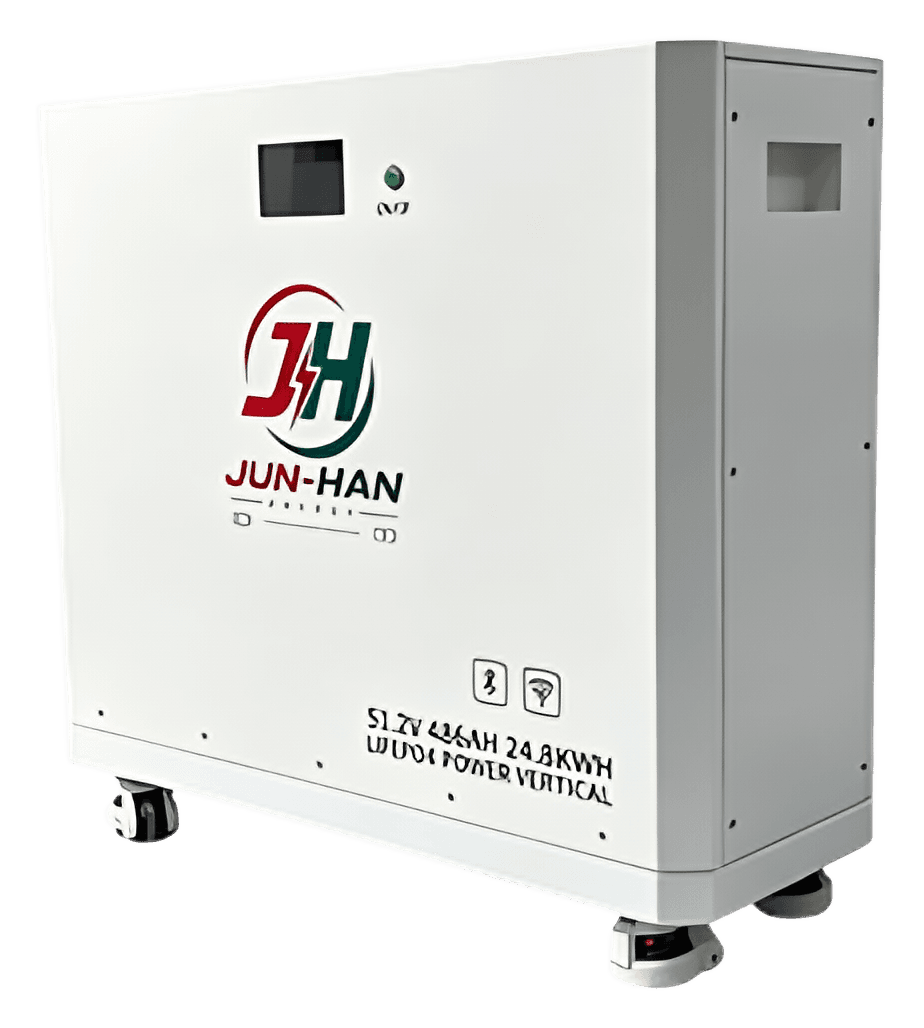

A 24.9 kWh metal-cased battery system on wheels for large homes, commercial sites and long backup times.
- LiFePO4
- 5-Year Warranty
- IP54
Overview
The JH-BE 24000 is a lithium iron phosphate battery pack with BMS, designed and manufactured by JUN-HAN Energy. It is built from 48 intelligently sorted cells in a 16S3P configuration. Every BMS is fully tested on a professional protection-board test system before use, so the pack is comprehensively protected in service. High energy density, long life, safety, a wide temperature range and a robust metal enclosure make it a dependable green energy product for homes, shops and offices.
- High-quality LiFePO4 (BYD) cells for better performance and reliability
- Each module has an independent BMS for intelligent cell management
- Supports multiple packs in parallel
- RS485/CAN communication, compatible with mainstream inverters
- Easy installation
- Life up to 8000 cycles
- Wide temperature range: -20 °C to 60 °C
- For homes, shops and offices
Specifications
Electrical
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 486 Ah |
| Energy | 24.88 kWh |
| Cell combination | 16S3P |
| Cycle life | ≥8000 cycles @ 80% DOD @ 35 °C |
| Monthly self-discharge | 3.5% |
| Charge efficiency | ≥97% |
| Discharge efficiency | ≥98% |
Charging
| Recommended charging voltage | 57.6 V |
|---|---|
| Recommended charging current | 100 A |
| Maximum charging voltage | 58.4 V |
| Maximum charging current | 200 A |
Discharging
| Recommended discharge current | 150 A |
|---|---|
| Maximum discharge current | 200 A |
| Discharge cut-off voltage | 43.2 V |
Physical
| Dimensions (W × D × H) | 760 × 300 × 640 mm |
|---|---|
| Package size (W × D × H) | 800 × 340 × 775 mm |
| Net weight | 165 kg ± 1 kg |
| Gross weight | 185 kg ± 1 kg |
| Ingress protection | IP54 |
| Shell material | Metal |
| Optional functions | Full guard |
Environment
| Charging temperature | 0 °C to 45 °C |
|---|---|
| Operating temperature | -20 °C to 60 °C |
| Storage temperature | 0 °C to 40 °C |
| Humidity | 10% to 85% RH (non-condensing) |
Warranty
| Warranty | 5 years |
|---|
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 486 Ah |
| Energy | 24.88 kWh |
| Cell combination | 16S3P |
| Cycle life | ≥8000 cycles @ 80% DOD @ 35 °C |
| Monthly self-discharge | 3.5% |
| Charge efficiency | ≥97% |
| Discharge efficiency | ≥98% |
| Recommended charging voltage | 57.6 V |
|---|---|
| Recommended charging current | 100 A |
| Maximum charging voltage | 58.4 V |
| Maximum charging current | 200 A |
| Recommended discharge current | 150 A |
|---|---|
| Maximum discharge current | 200 A |
| Discharge cut-off voltage | 43.2 V |
| Dimensions (W × D × H) | 760 × 300 × 640 mm |
|---|---|
| Package size (W × D × H) | 800 × 340 × 775 mm |
| Net weight | 165 kg ± 1 kg |
| Gross weight | 185 kg ± 1 kg |
| Ingress protection | IP54 |
| Shell material | Metal |
| Optional functions | Full guard |
| Charging temperature | 0 °C to 45 °C |
|---|---|
| Operating temperature | -20 °C to 60 °C |
| Storage temperature | 0 °C to 40 °C |
| Humidity | 10% to 85% RH (non-condensing) |
| Warranty | 5 years |
|---|
Specifications are subject to change without notice. Images are for reference only.

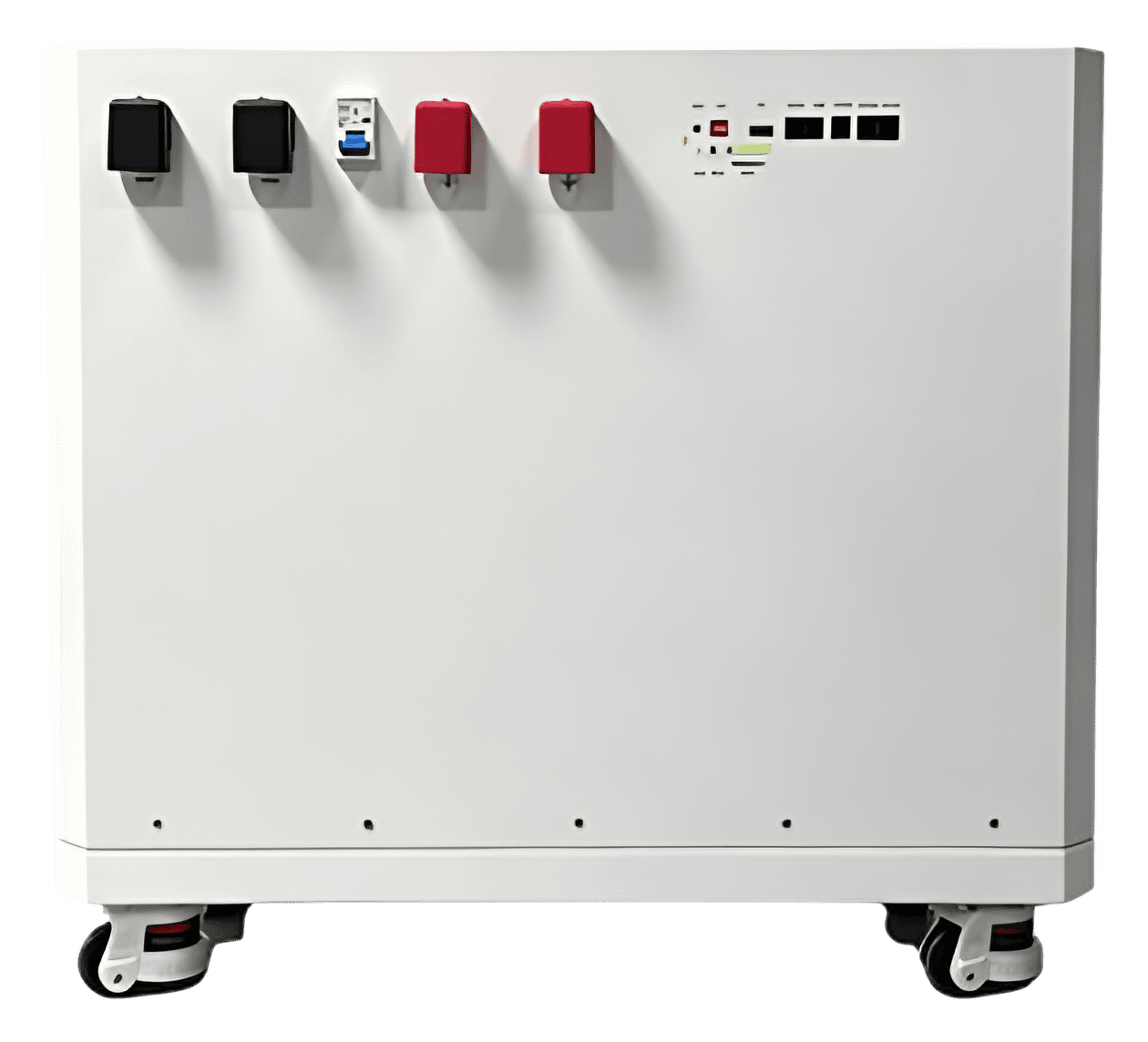

Front panel interfaces
Communication ports, switches and terminals on the battery front panel.
- 6Parallel communication
- 7RS232
- 8CAN port
- 9Inverter communication
- 10DIP switch
- 11Reset button
- 12Weak current switch
- 13Battery positive
- 14Dry contact
- 15Battery negative

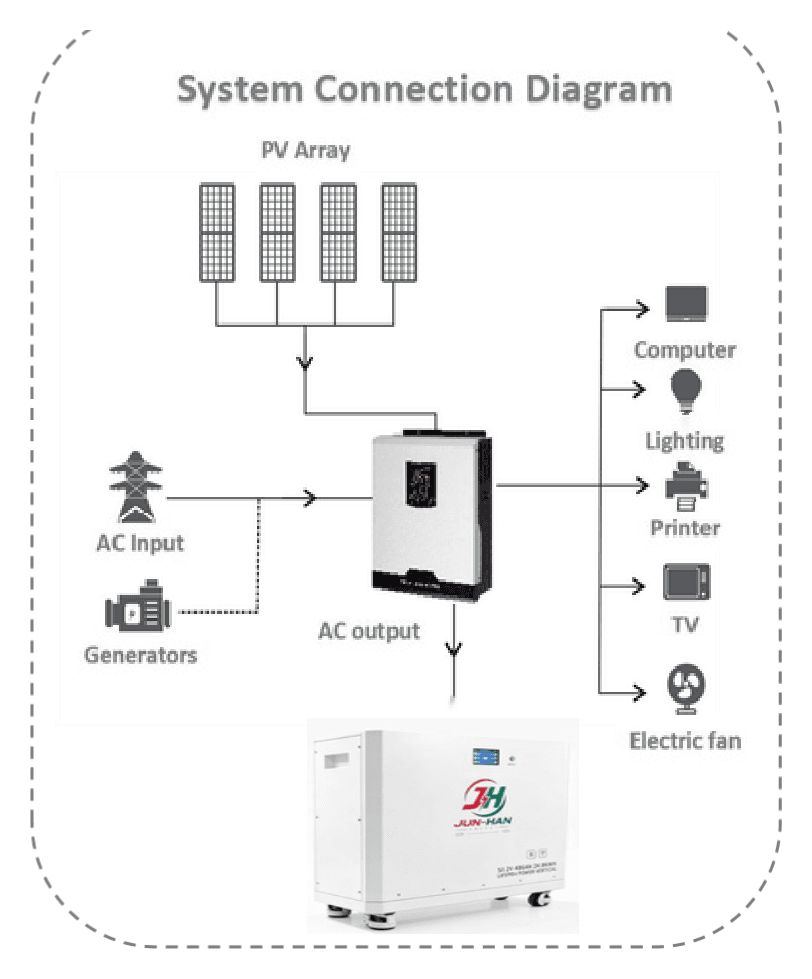

System connection
How the JH-BE 24000 connects in a solar storage system: solar panels and the grid or a generator feed the hybrid inverter, which powers your home loads and charges the battery.
FAQ
Add up the watts of the appliances you want to run during an outage and multiply by the hours. A typical home running fans, lights, a fridge and a TV for 5 hours needs about 5 to 10 kWh. Our team can size it for you.
They support CAN and RS485 communication used by mainstream hybrid inverters. Share your inverter model to confirm.
Yes. JH-BE 7500 supports up to 16 modules and JH-BE 16000 up to 15 units. Ask us for other models.
Manufacturing defects and capacity performance under normal use. Full terms are provided at purchase.
