22 kW Wall Charger
Wall or pole-mounted Type 2 AC charger with Wi-Fi and OCPP
- Power
- 22 kW
- Supply
- 400 V AC
- Connector
- Type 2, 5 m cable
- Protection
- IP65 / IK10
- Network
- Wi-Fi, OCPP 1.6
- Mounting
- Wall or pole
A 22 kW three-phase Type 2 charger for homes, offices and car parks, with Wi-Fi and OCPP 1.6 for remote management.
- Type 2
- IP65
- OCPP 1.6
Overview

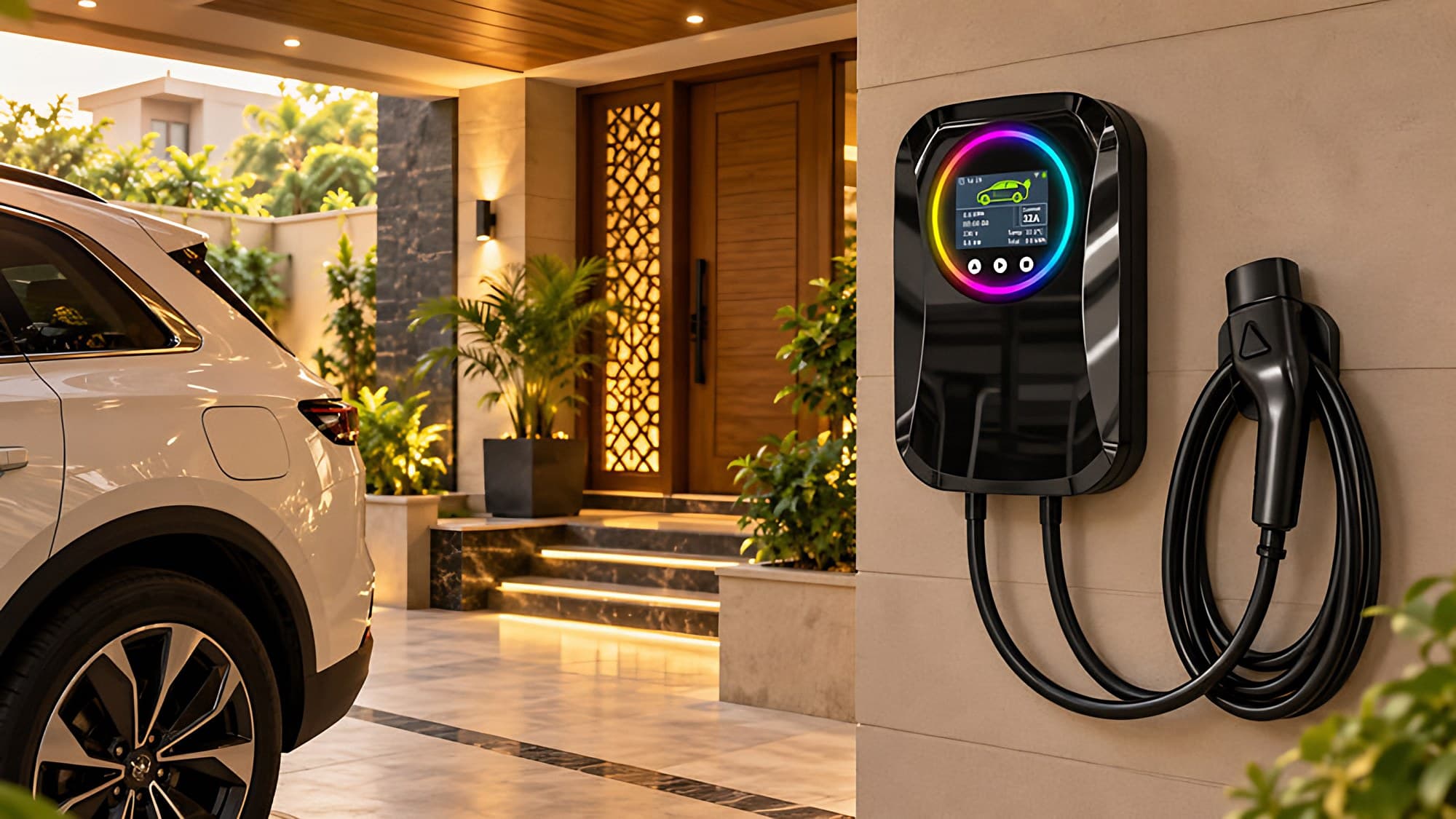

This wall-mounted EU-standard EV charger delivers 22 kW from a 400 V AC three-phase supply through a Type 2 connector on a 5 m cable. It mounts on a wall or a pole, is rated IP65 against dust and water and IK10 against impact, and works from -30 °C to 50 °C. Wi-Fi is built in, with optional 4G or Ethernet, and OCPP 1.6 (JSON) lets it connect to charge-point management software for offices, apartments and car parks.
- 22 kW output from a three-phase supply

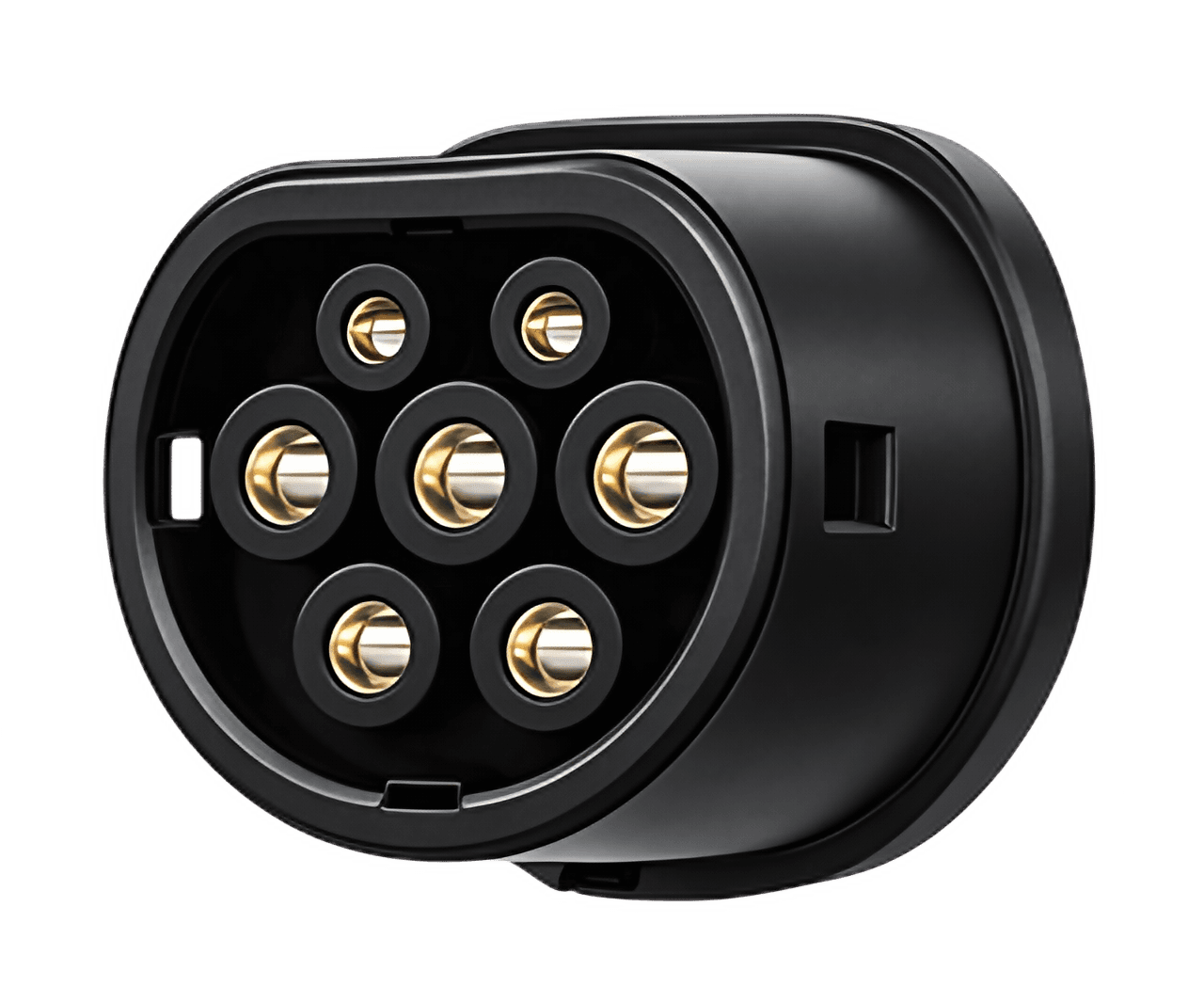

- Type 2 connector with a 5 m cable
- IP65 and IK10 rated enclosure
- Wall or pole mounting
- Wi-Fi as standard, optional 4G or Ethernet
- OCPP 1.6 (JSON) for charge-point management
Specifications
Electrical
| Product name | Wall-mounted EU-standard EV charger |
|---|---|
| Output power | 22 kW |
| Input and output voltage | 400 V AC ±10% |
| Connectors | Type 2 connector, 5 m cable |
| Compatibility | All electric vehicles |
Physical
| Dimensions (W × H × D) | 342 × 352 × 132 mm |
|---|---|
| Installation | Wall and pole mounting |
| Protection rating | IP65 and IK10 |
Environment
| Operating temperature | -30 °C to 50 °C |
|---|
Communication
| Communication method | Wi-Fi. Optional: 4G / Ethernet |
|---|---|
| Communication protocol | OCPP 1.6 (JSON) |
| Product name | Wall-mounted EU-standard EV charger |
|---|---|
| Output power | 22 kW |
| Input and output voltage | 400 V AC ±10% |
| Connectors | Type 2 connector, 5 m cable |
| Compatibility | All electric vehicles |
| Dimensions (W × H × D) | 342 × 352 × 132 mm |
|---|---|
| Installation | Wall and pole mounting |
| Protection rating | IP65 and IK10 |
| Operating temperature | -30 °C to 50 °C |
|---|
| Communication method | Wi-Fi. Optional: 4G / Ethernet |
|---|---|
| Communication protocol | OCPP 1.6 (JSON) |
Specifications are subject to change without notice. Images are for reference only.
FAQ
The 7 kW wall charger suits most homes on a single-phase supply. If your home has a three-phase supply, the 22 kW wall charger charges faster.
The wall chargers use the Type 2 connector and the DC fast chargers use CCS2, the standards used by most electric cars sold in Pakistan. Share your car model and we will confirm.
Yes. The DC fast chargers come with 5 m charging cables as standard, and cable lengths can be customised on request.
Yes. The DC fast chargers are built for fuel stations, fleets and commercial car parks, and the 22 kW wall charger supports OCPP 1.6 for charge-point software. Contact us for project pricing.
