Lithium Energy Storage
JH-BE 16000
51.2 V 314 Ah LiFePO4 Battery, 16.08 kWh
- Energy
- 16.08 kWh
- Voltage
- 51.2 V
- Capacity
- 314 Ah
- Max discharge
- 200 A
- Parallel
- 15 units
- Protection
- IP54
A 16 kWh floor-standing battery with Grade A+ cells, touch-screen display and up to 15 units in parallel.
- LiFePO4
- 5-Year Warranty
- IP54
Overview
The JH-BE 16000 is a 51.2 V 314 Ah LiFePO4 battery pack with a built-in intelligent BMS, designed for reliable, efficient energy storage. Grade A+ prismatic cells provide stable performance, high current output and long service life. The BMS protects against over-charge, over-discharge, over-current, short circuit and cell imbalance. It supports RS485/CAN communication with 30+ inverter brands and up to 15 units in parallel. With a multi-language touch-screen display, low internal resistance and long cycle life, it suits home, commercial, solar and off-grid storage.
- Grade A+ LiFePO4 cells for reliable performance and long life
- Intelligent BMS with multiple safety protections
- Up to 15 battery units in parallel
- RS485/CAN communication with 30+ inverter brands
- Touch screen with multi-language support
- Low internal resistance for stable high-current output
- 8000+ cycles at 80% DOD
- Rack-mounted / floor-standing installation
- For home, commercial, solar and off-grid use
Specifications
Electrical
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 314 Ah |
| Energy | 16.08 kWh |
| Cell type | Prismatic LFP cell |
| Cycle life | 8000+ cycles @ 80% DOD |
Charging
| Standard charge voltage | 58 V |
|---|---|
| Standard charge current | ≤150 A |
| Max charge current | 200 A |
| Balancing current (BMS) | 5–10 A |
Discharging
| Max discharge current | 200 A |
|---|---|
| Discharge cut-off voltage | 45 V |
Physical
| Ingress protection | IP54 |
|---|---|
| Dimensions (W × D × H) | 440 × 270 × 850 mm |
| Weight | 128 kg |
| Colour | White |
| Installation | Floor mounted |
Environment
| Charge temperature | 0 °C to 55 °C |
|---|---|
| Discharge temperature | -20 °C to 60 °C |
Warranty
| Warranty | 5 years |
|---|
| Nominal voltage | 51.2 V |
|---|---|
| Nominal capacity | 314 Ah |
| Energy | 16.08 kWh |
| Cell type | Prismatic LFP cell |
| Cycle life | 8000+ cycles @ 80% DOD |
| Standard charge voltage | 58 V |
|---|---|
| Standard charge current | ≤150 A |
| Max charge current | 200 A |
| Balancing current (BMS) | 5–10 A |
| Max discharge current | 200 A |
|---|---|
| Discharge cut-off voltage | 45 V |
| Ingress protection | IP54 |
|---|---|
| Dimensions (W × D × H) | 440 × 270 × 850 mm |
| Weight | 128 kg |
| Colour | White |
| Installation | Floor mounted |
| Charge temperature | 0 °C to 55 °C |
|---|---|
| Discharge temperature | -20 °C to 60 °C |
| Warranty | 5 years |
|---|
Specifications are subject to change without notice. Images are for reference only.
Front panel interfaces
Communication ports, switches and terminals on the battery front panel.
- 6Parallel communication
- 7RS232
- 8CAN port
- 9Inverter communication
- 10DIP switch
- 11Reset button
- 12Weak current switch
- 13Battery positive
- 14Dry contact
- 15Battery negative

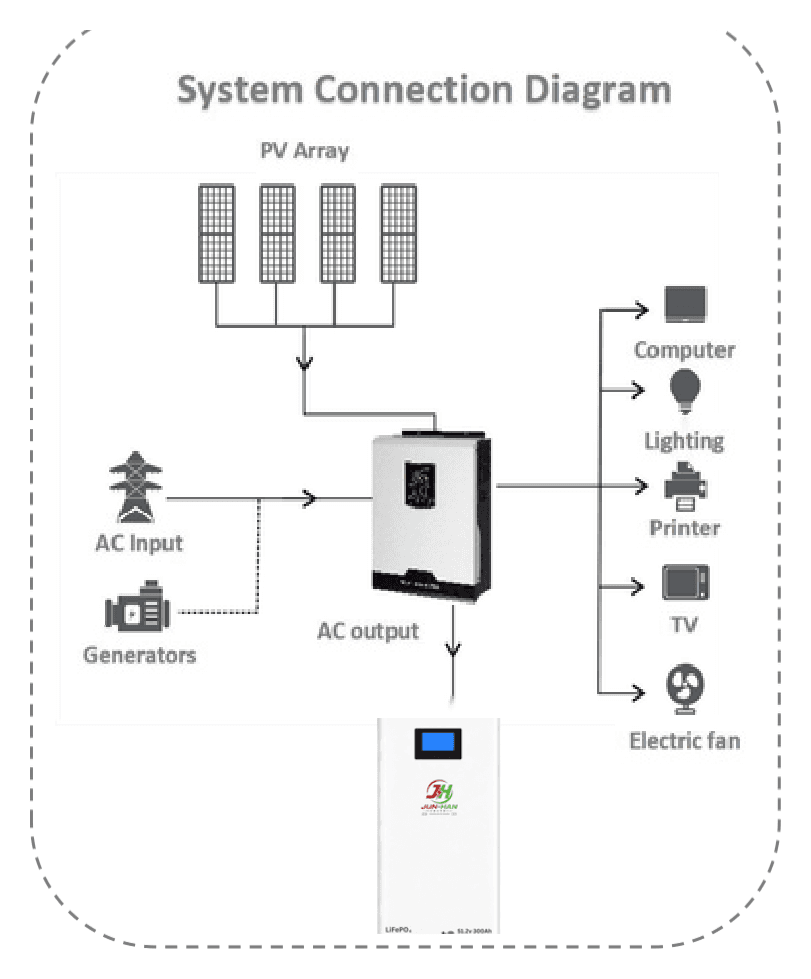

System connection
How the JH-BE 16000 connects in a solar storage system: solar panels and the grid or a generator feed the hybrid inverter, which powers your home loads and charges the battery.
FAQ
Add up the watts of the appliances you want to run during an outage and multiply by the hours. A typical home running fans, lights, a fridge and a TV for 5 hours needs about 5 to 10 kWh. Our team can size it for you.
They support CAN and RS485 communication used by mainstream hybrid inverters. Share your inverter model to confirm.
Yes. JH-BE 7500 supports up to 16 modules and JH-BE 16000 up to 15 units. Ask us for other models.
Manufacturing defects and capacity performance under normal use. Full terms are provided at purchase.
