TA-DC-DD 80KW
80 kW DC fast charger, dual CCS2
- Power
- 80 kW
- Output
- 200 V to 1000 V
- Current
- 0 A to 133 A
- Connector
- CCS2 + CCS2
- Protection
- IP54
- Efficiency
- 95%

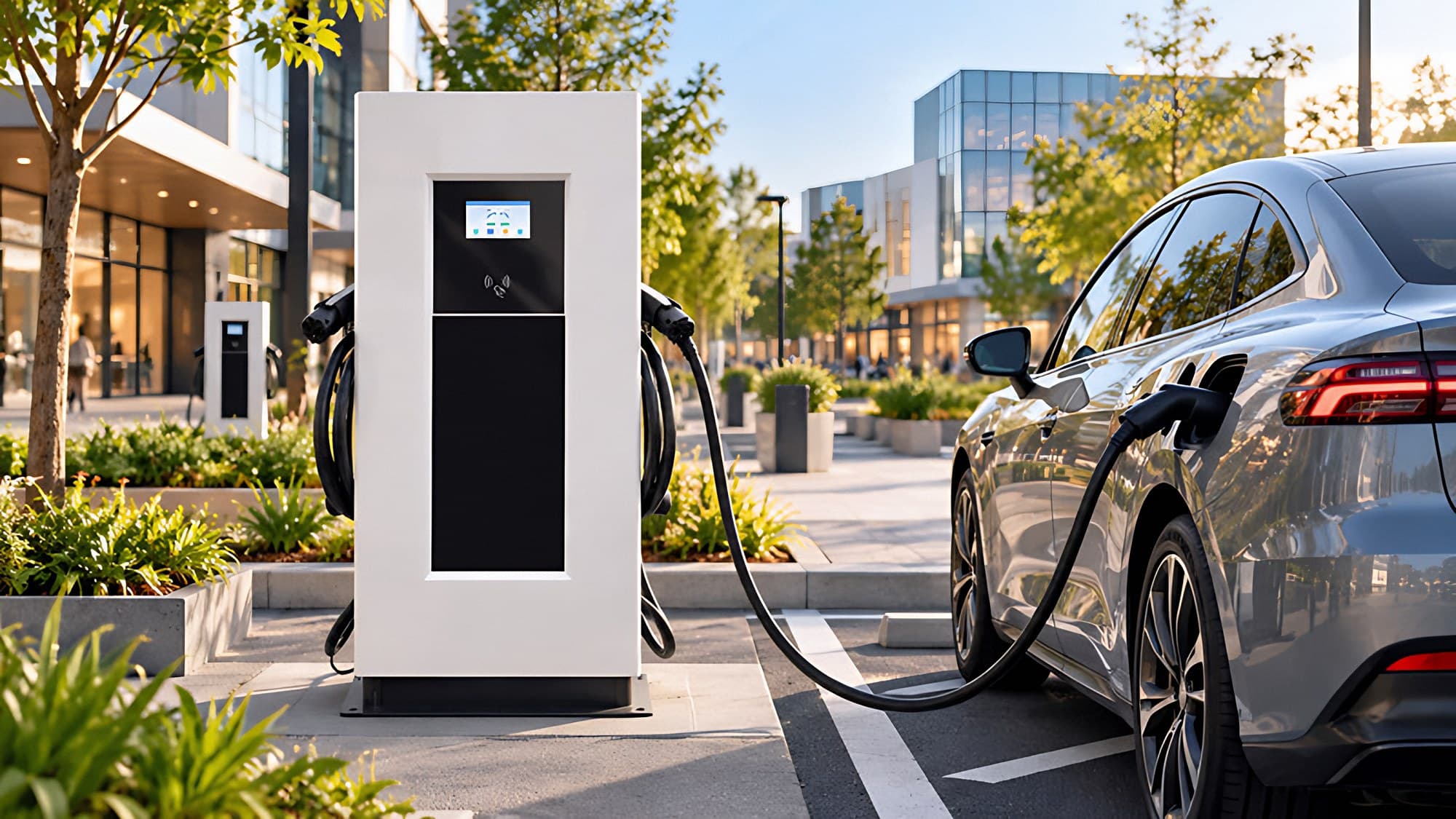

An 80 kW floor-standing DC fast charger with two CCS2 guns for busy commercial sites and fleets.
- DC fast charging
- CCS2
- IP54
Overview

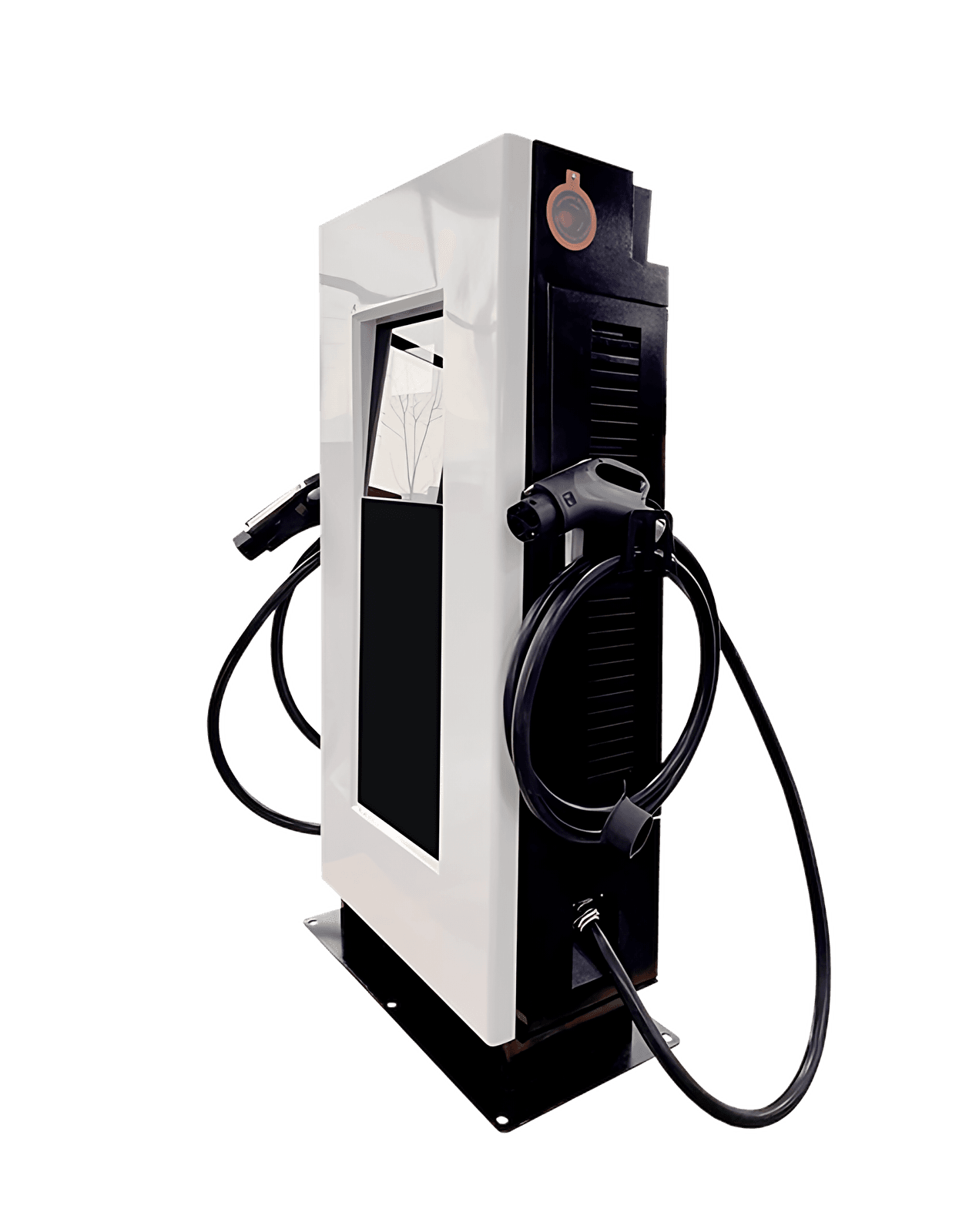

The TA-DC-DD 80KW is a floor-standing DC fast charger with two CCS2 charging guns. It delivers up to 80 kW across a 200 V to 1000 V output range for cars, vans and buses. It runs from a three-phase supply at 95% efficiency, shows charging status on a 5-inch colour display, and its IP54 enclosure is built for outdoor sites from -30 °C to 50 °C.
- Dual CCS2 charging guns
- Wide 200 V to 1000 V output for cars, vans and buses
- Three-phase 3P + N + PE input
- 95% efficiency and power factor above 0.99
- 5-inch colour display
- IP54 enclosure rated for -30 °C to 50 °C
- Cable lengths can be customised
Specifications
Output
| Output power | 80 kW |
|---|---|
| Output current | 0 A to 133 A |
| Output voltage | 200 V to 1000 V |
| Interface standard | CCS2 + CCS2 |
Input
| Input connection | 3P + N + PE |
|---|---|
| Input voltage | 285 V to 475 V |
| Input current | 130 A |
| Frequency | 50/60 Hz |
| Power factor | > 0.99 at rated voltage |
| Efficiency | 95% |
Physical
| Display | 5-inch colour display |
|---|---|
| Input cable length | Customisable |
| Gun cable length | 5 m (customisable) |
| Packing size | 102 × 57 × 167 cm |
| Package weight | 235 kg |
Environment
| Operating temperature | -30 °C to 50 °C |
|---|---|
| Relative humidity | RH < 95% |
| Altitude | ≤ 2000 m |
| Ingress protection | IP54 |
| Output power | 80 kW |
|---|---|
| Output current | 0 A to 133 A |
| Output voltage | 200 V to 1000 V |
| Interface standard | CCS2 + CCS2 |
| Input connection | 3P + N + PE |
|---|---|
| Input voltage | 285 V to 475 V |
| Input current | 130 A |
| Frequency | 50/60 Hz |
| Power factor | > 0.99 at rated voltage |
| Efficiency | 95% |
| Display | 5-inch colour display |
|---|---|
| Input cable length | Customisable |
| Gun cable length | 5 m (customisable) |
| Packing size | 102 × 57 × 167 cm |
| Package weight | 235 kg |
| Operating temperature | -30 °C to 50 °C |
|---|---|
| Relative humidity | RH < 95% |
| Altitude | ≤ 2000 m |
| Ingress protection | IP54 |
Specifications are subject to change without notice. Images are for reference only.
FAQ
The 7 kW wall charger suits most homes on a single-phase supply. If your home has a three-phase supply, the 22 kW wall charger charges faster.
The wall chargers use the Type 2 connector and the DC fast chargers use CCS2, the standards used by most electric cars sold in Pakistan. Share your car model and we will confirm.
Yes. The DC fast chargers come with 5 m charging cables as standard, and cable lengths can be customised on request.
Yes. The DC fast chargers are built for fuel stations, fleets and commercial car parks, and the 22 kW wall charger supports OCPP 1.6 for charge-point software. Contact us for project pricing.
