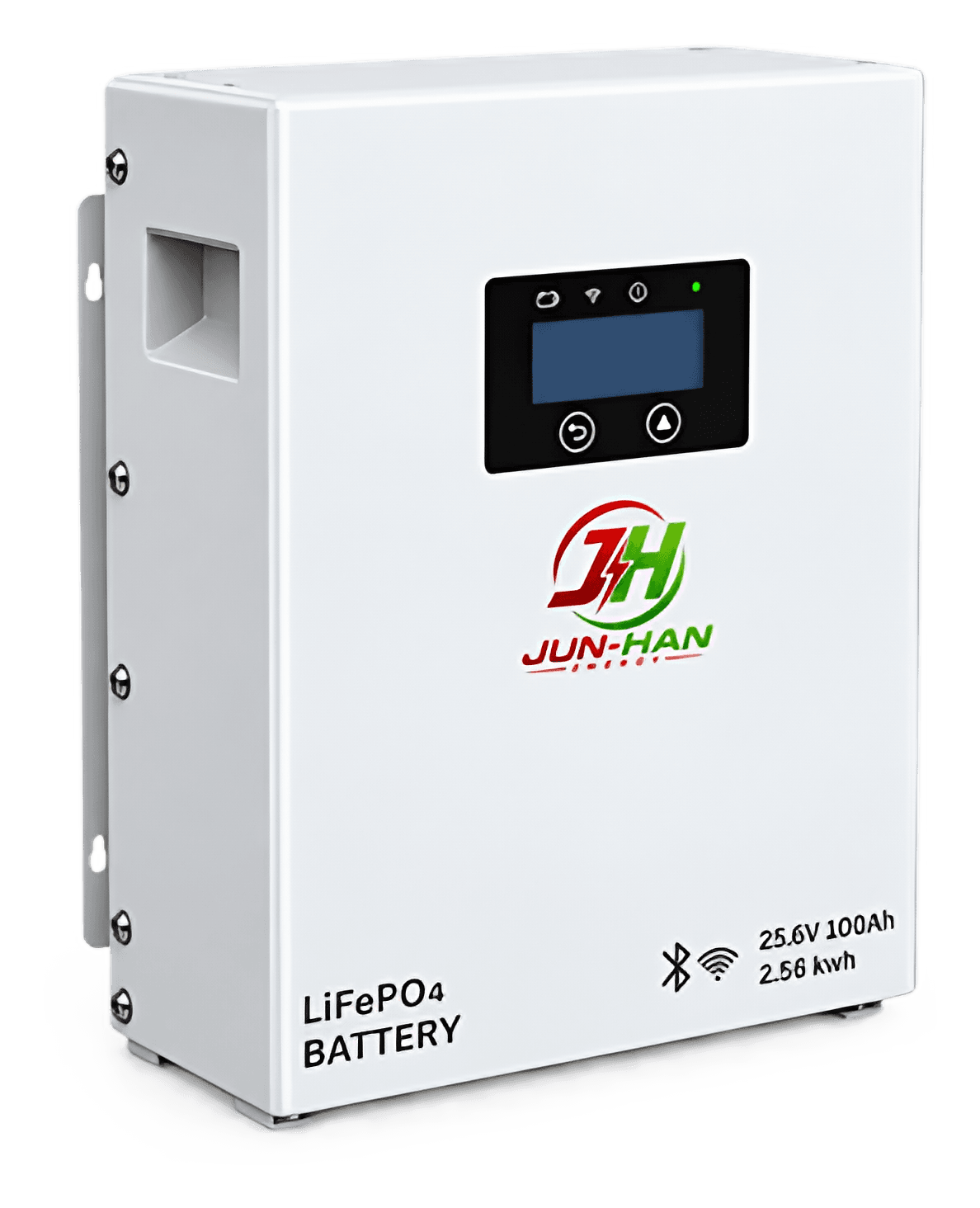

Lithium Energy Storage
JH-BE 2400
25.6 V 100 Ah LiFePO4 Battery, 2.6 kWh
- Energy
- 2.61 kWh
- Voltage
- 25.6 V
- Capacity
- 102 Ah
- Cycle life
- ≥8000 cycles @ 80% DOD
- Max discharge
- 100 A
- Warranty
- 5 years
A compact 25.6 V wall-mounted LiFePO4 battery for home backup, small solar systems and off-grid use.
- LiFePO4
- 5-Year Warranty
Overview
The JH-BE 2400 is a 25.6 V 102 Ah LiFePO4 battery pack built for reliable, efficient energy storage. High-quality LFP prismatic cells deliver stable performance, high safety and long service life. The integrated BMS manages and protects the battery during charging and discharging, supporting up to 100 A charge and discharge current. With about 2.61 kWh of energy, a wide operating temperature range, a heavy-duty 175 to 200 A breaker and a compact wall-mounted design, it suits home backup, solar, off-grid and other storage applications.
- Long cycle life, ≥8000 cycles at 80% DOD
- High-safety LFP (LiFePO4) prismatic cell technology
- 25.6 V nominal voltage with 102 Ah nominal capacity
- 50 A standard charging current, up to 100 A maximum
- Up to 100 A maximum discharge current
- 20 to 22 V discharge cut-off for battery protection
- Heavy-duty 175 to 200 A breaker
- Charging 0 °C to 60 °C, discharging -20 °C to 60 °C
- Compact wall-mounted design, 330 × 135 × 420 mm
- 5-year warranty
Specifications
Electrical
| Nominal voltage | 25.6 V |
|---|---|
| Nominal capacity | 102 Ah |
| Energy | 2.61 kWh |
| Cell type | LFP (prismatic) |
| Cycle life | ≥8000 cycles @ 80% DOD |
Charging
| Standard charge voltage | 30 V |
|---|---|
| Standard charge current | 50 A |
| Max charge current | 100 A |
| Balancing current (BMS) | 5–10 A |
Discharging
| Max discharge current | 100 A |
|---|---|
| Discharge cut-off voltage | 20–22 V |
| Breaker | 175–200 A |
Physical
| Dimensions (W × D × H) | 330 × 135 × 420 mm |
|---|---|
| Weight | 26 kg |
| Colour | White |
| Installation | Wall mounted |
Environment
| Charge temperature | 0 °C to 60 °C |
|---|---|
| Discharge temperature | -20 °C to 60 °C |
Warranty
| Warranty | 5 years |
|---|
| Nominal voltage | 25.6 V |
|---|---|
| Nominal capacity | 102 Ah |
| Energy | 2.61 kWh |
| Cell type | LFP (prismatic) |
| Cycle life | ≥8000 cycles @ 80% DOD |
| Standard charge voltage | 30 V |
|---|---|
| Standard charge current | 50 A |
| Max charge current | 100 A |
| Balancing current (BMS) | 5–10 A |
| Max discharge current | 100 A |
|---|---|
| Discharge cut-off voltage | 20–22 V |
| Breaker | 175–200 A |
| Dimensions (W × D × H) | 330 × 135 × 420 mm |
|---|---|
| Weight | 26 kg |
| Colour | White |
| Installation | Wall mounted |
| Charge temperature | 0 °C to 60 °C |
|---|---|
| Discharge temperature | -20 °C to 60 °C |
| Warranty | 5 years |
|---|
Specifications are subject to change without notice. Images are for reference only.
Front panel interfaces
Communication ports, switches and terminals on the battery front panel.
- 6Parallel communication
- 7RS232
- 8CAN port
- 9Inverter communication
- 10DIP switch
- 11Reset button
- 12Weak current switch
- 13Battery positive
- 14Dry contact
- 15Battery negative

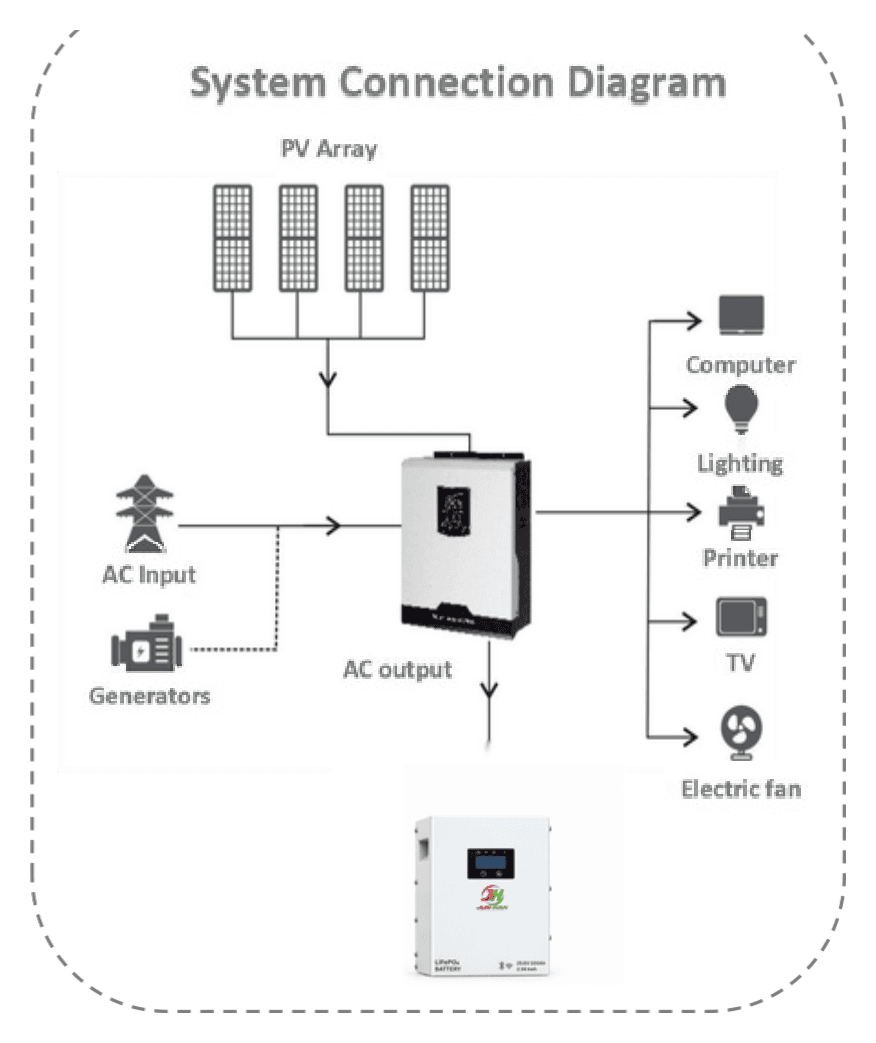

System connection
How the JH-BE 2400 connects in a solar storage system: solar panels and the grid or a generator feed the hybrid inverter, which powers your home loads and charges the battery.
FAQ
Add up the watts of the appliances you want to run during an outage and multiply by the hours. A typical home running fans, lights, a fridge and a TV for 5 hours needs about 5 to 10 kWh. Our team can size it for you.
They support CAN and RS485 communication used by mainstream hybrid inverters. Share your inverter model to confirm.
Yes. JH-BE 7500 supports up to 16 modules and JH-BE 16000 up to 15 units. Ask us for other models.
Manufacturing defects and capacity performance under normal use. Full terms are provided at purchase.
